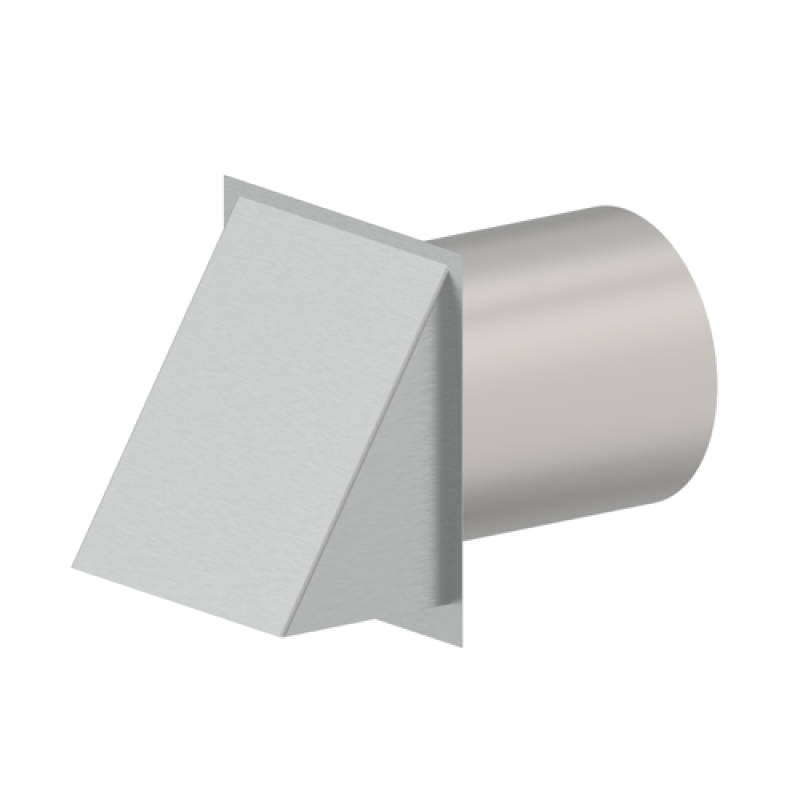

- Quality constructed from heavy-duty 28 gauge Galvanized Steel, 24 gauge Copper, or 0.02 mill-finished Aluminum.

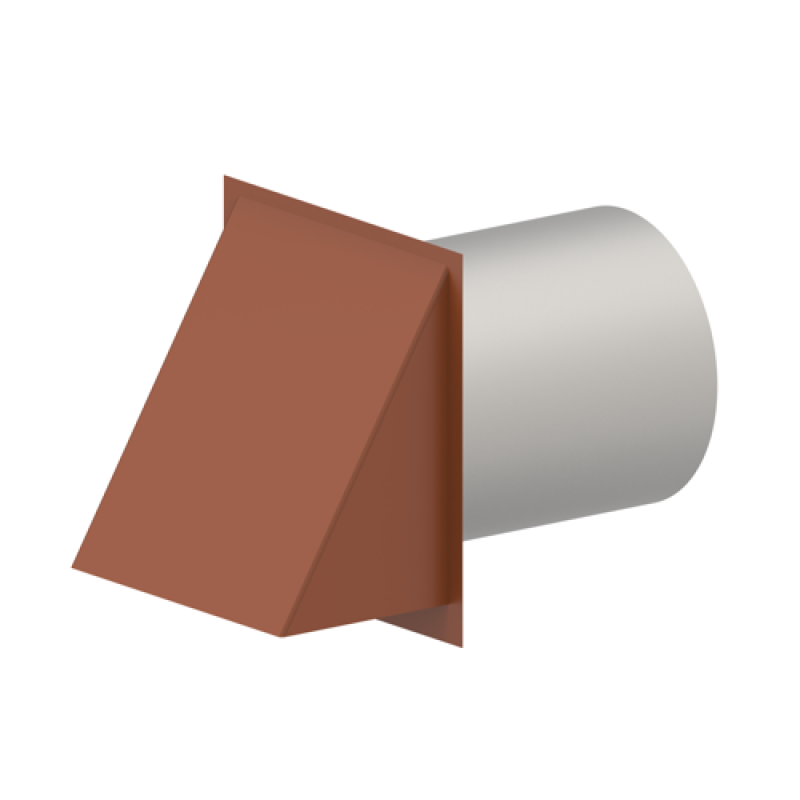

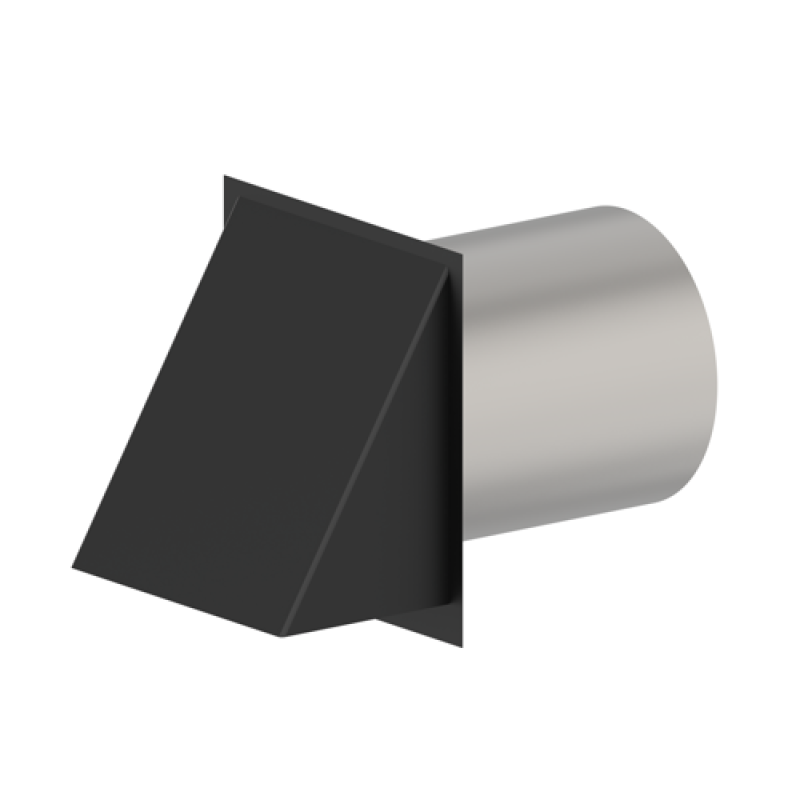

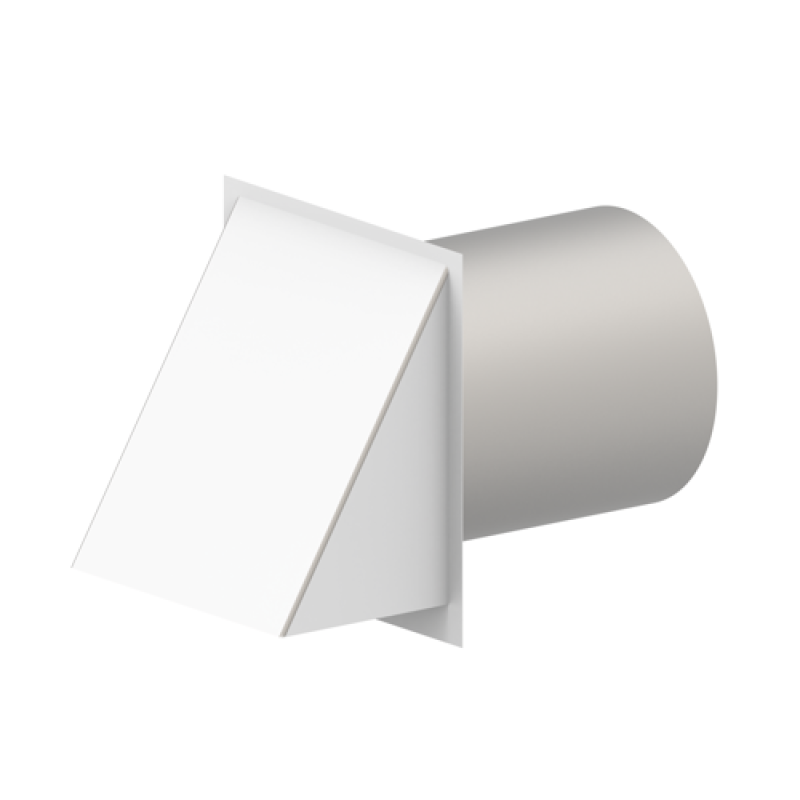

- Pre-painted options also available in Galvanized steel.
- Primarily used for air exhaust applications (not rated for dryer ventilation).
- Available with a built-in hinged backdraft damper to allow steady air flow when venting.
- Available with ¼ inch insect screen to prevent birds and many kinds of insects from entering the duct.
- Angled hood design for balanced profile and air fow.
- Available with standard 8 1/4” long Galvanized Steel tube or 1 1/2” short tube, built into flange for wall mounted installation.

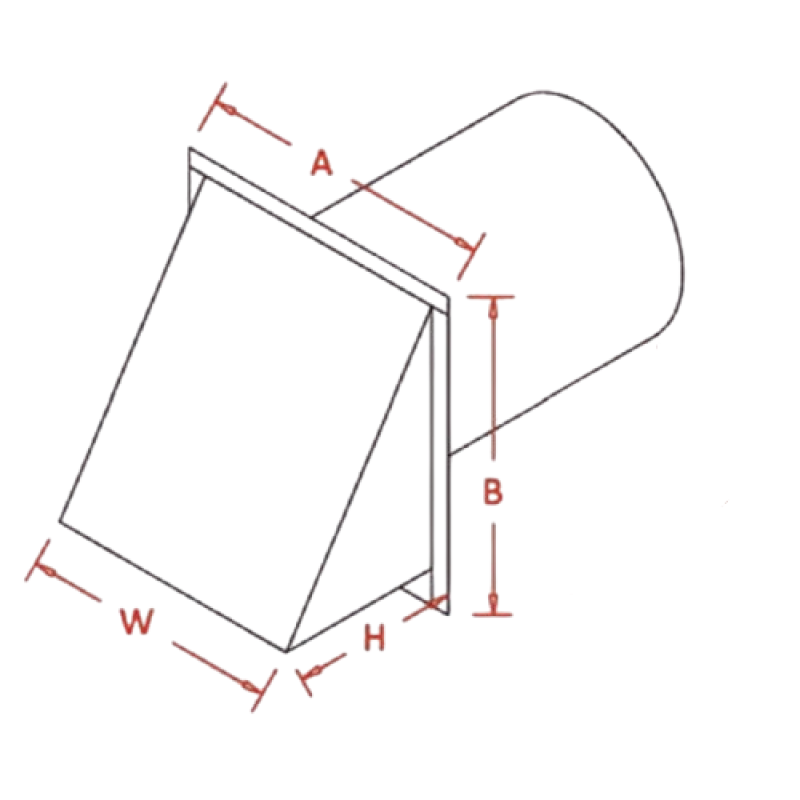

| Series | Hooded Wall Vents |
| Size | 5" |
| Item | DWV (Damper Only) |
| A | 7 |
| B | 7 7/16 |
| H | 3 3/4 |
| W | 6 |
